Tinius Olsen

Automatic Compactor for Bituminous Mixes

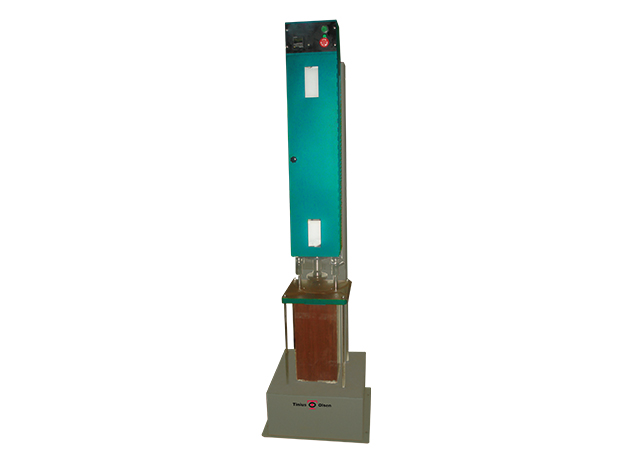

slider1

The Automatic Compactor eliminates the laborious process of manual compaction and results in consistent laboratory specimens.

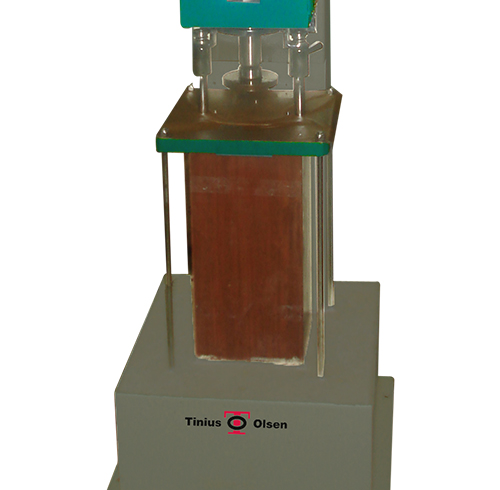

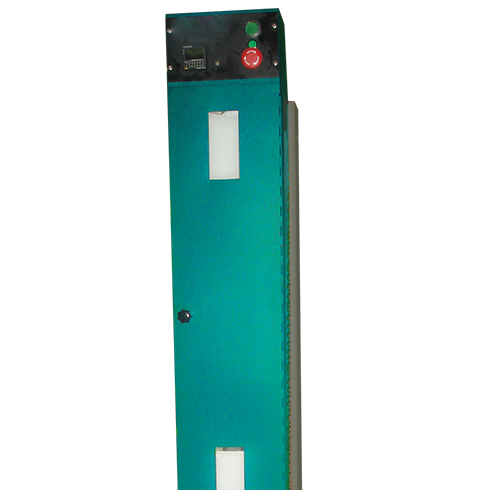

This equipment consists of a drive mechanism that lifts a 4.5kg weight and drops it through a height of 457mm. A removable rammer foot facilitates preheating. A compaction pedestal with specimen holder is fixed to the base. An automatic blow counter enables the number of blows to be preset before each test and automatically stops the machine on completion.

Features & Benefits

  • Applicable Standards: BS598-107, EN 12697-10, -30, AASHTO T245
  • Rugged construction to withstand hard work
  • Fully automatic and easy to operate
  • Uniform compaction
  • Automatic blow counter

    • Standard & Optional Accessories

    Supplied as standard:

  • TO-55002 Compaction mold
  • TO-55003 Base plate
  • TO-55004 Extension collar

    •
    Optional accessories:

  • TO-55002 Compaction mold
  • TO-55003 Base plate
  • TO-55004 Extension collar
