Tinius Olsen

Los Angeles Abrasion Tester

slider1

The Los Angeles Abrasion Machine comprises a heavy steel cylinder, rotated about its horizontal axis.

The cylinder incorporates a removable internal shelf. Two alternative shelf positions are provided: one for ASTM and one for the EN test method. The heavy duty steel cylinder is manufactured from structural steel plate. The filling aperture is provided with a cover.

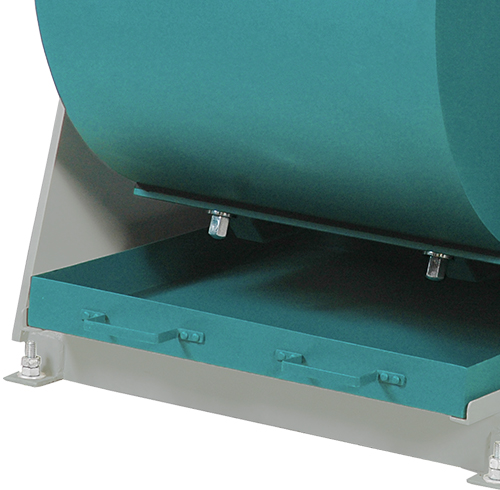

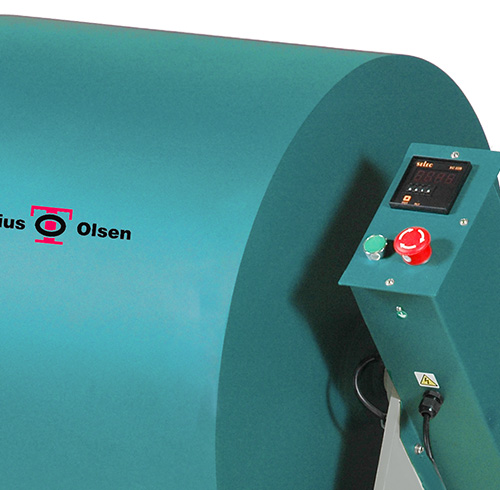

The machine is fitted with a digital revolution counter and steel tray for specimen unloading. It is also supplied with one set of abrasive charges as standard.

Applicable Standards: ASTM C 131, C 535, EN 1097-2, AASHTO T96.

Features & Benefits

  • European and ASTM methods
  • Revolution counter
  • Full width cover
  • Cabinet option is also available with Los Angeles

    •
    Supplied as standard with:

  • For BS/EN Standards TO-45801-EN Abrasive Charge, consisting of a set of 12 hardened steel balls of 48mm diameter
  • For ASTM Standards TO-45801-ASTM Abrasive Charge, consisting of a set of 12 hardened steel balls of 48mm diameter
  • For AUS Standards TO-45801-AS Abrasive Charge, consisting of a set of 12 hardened steel balls of 48mm diameter

    • Options & Accessories

  • TO-45801-EN Abrasive charge, consisting of a set of 12 hardened steel balls of 48mm diameter
  • TO-45801-ASTM Abrasive charge, consisting of a set of 12 hardened steel balls of 48mm diameter
  • TO-45801-AS Abrasive charge, consisting of a set of 12 hardened steel balls of 48mm diameter
