Tinius Olsen

Model FH11 Universal

tinius
download
C53A4256
C53A4256
C53A4256
C53A4256
C53A4256
previous arrow
next arrow

The model FH11-50/51 is a heavy duty, rock solid C-frame with supreme rigidity. It is a closed loop system based on a load cell with Rockwell, Superficial Rockwell, Vickers, Knoop, Brinell, Ball indentation, HVT and HBT scales as part of the testing capabilities.

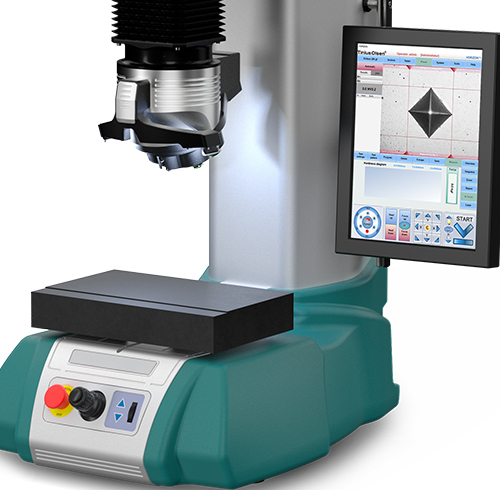

The test force ranges from 200-250kgf and test cycles can be automatic or manual. With motorized eight-position turret and descending test head capable of workpiece detection, it is one of the most loaded technological hardness testers. It also has the added advantage of a 15in industrial touchscreen and PC-based Horizon software.

Features & Benefits

  • Load cell, closed loop, force feedback system
  • Load range 200gf-3000kgf (1.96-29kN)
  • Meets or exceeds ISO, ASTM and JIS standards

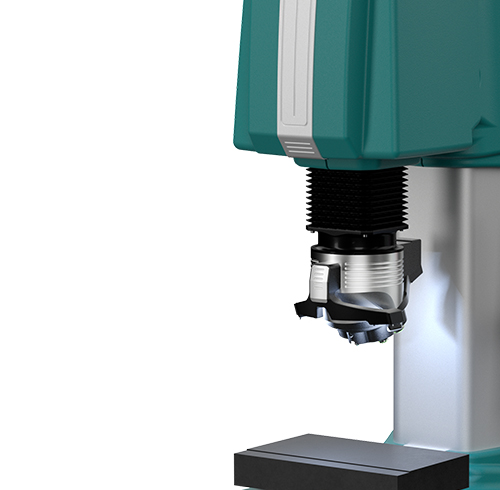

  • Descending test head with automatic workpiece detection
  • Free definable, manual or motorized eight-position turret for objectives and indenters
  • High definition optical system for images of 0.7-1000x magnification
  • 18MP full HD camera system
  • PC-based Horizon hardness testing firmware and database file system, standard
  • Large, adjustable 15in industrial touchscreen
  • Automatic or manual focus, manual or fully automatic indent measurement, standard
  • Testing procedure and results storage on embedded hard drive
  • LAN, WLAN, USB-2, RS232, printer and DVI connectivity, standard
  • On board built-in driver for (optional) motorized X-Y stage, standard

    • Model details

    FH-011-0050:

  • 200gf-250kgf – Rockwell, Superficial Rockwell, Vickers, Knoop, Brinell, Ball indentation, HVT, HBT

    •
    FH-011-0051:

  • 200gf-3000kgf – Rockwell, Superficial Rockwell, Vickers, Knoop, Brinell, Ball indentation, HVT, HBT
