Tinius Olsen

Model FH12 Universal

tinius
download
C53A4256
C53A4256
C53A4256
C53A4256
C53A4256
previous arrow
next arrow

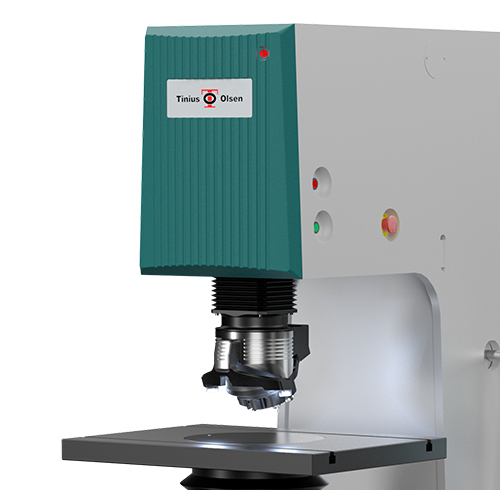

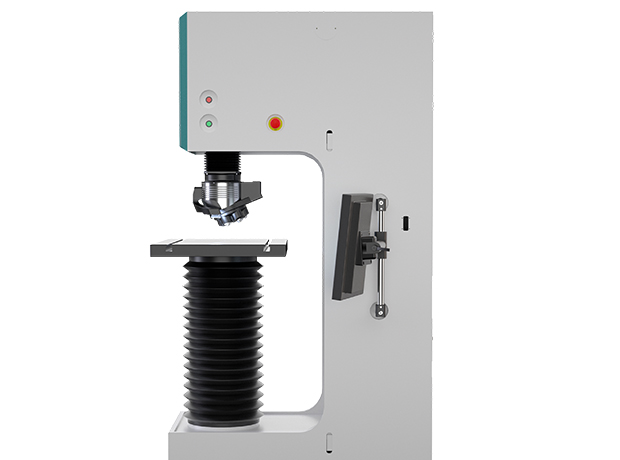

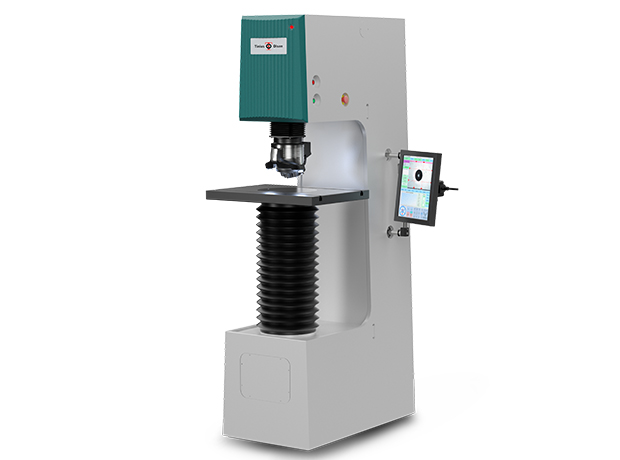

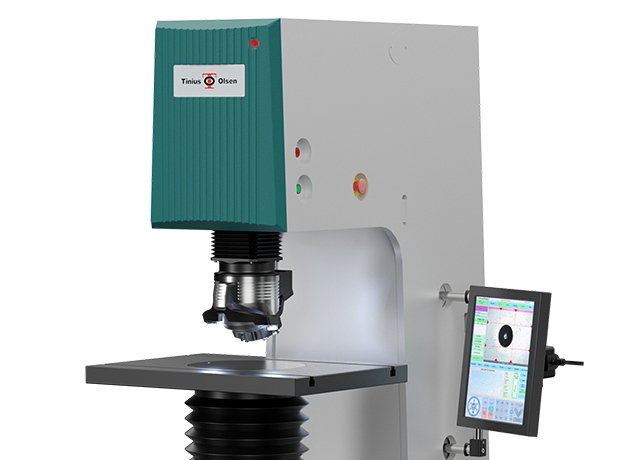

The model FH12-37 is a heavy duty, rock solid C-frame with supreme rigidity. It is a closed loop system based on a load cell with Rockwell, Vickers, Knoop, Brinell, Ball indentation, HVT and HBT scales as part of the testing capabilities.

The test force ranges from 5-3000kgf and test cycles can be automatic or manual. With motorized Z-axis, descending test head capable of workpiece detection and motorized six-position turret, it is one of the most loaded technological hardness testers. It also has the added advantage of a 15in industrial touchscreen and PC-based Horizon software.

Features & Benefits

  • Load cell, closed loop, force feedback system
  • Load range 5-3000kgf (49N-29kN)
  • Meets or exceeds ISO, ASTM and JIS standards
  • Motorized Z-axis (standard)
  • Descending test head with automatic workpiece detection
  • Free definable, manual or motorized six-position turret for objectives and indenters
  • High definition optical system for images of 0.7-1000x magnification
  • PC-based Horizon hardness testing firmware and database file system, standard

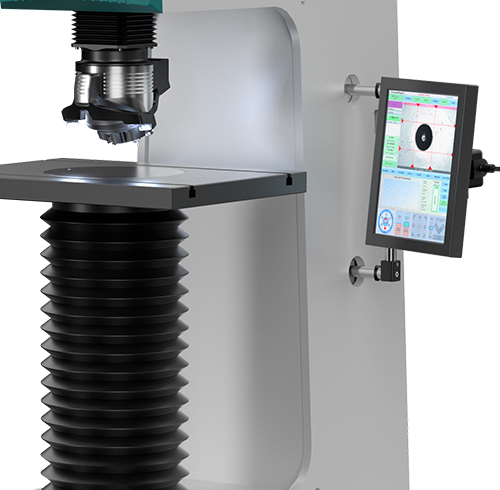

  • Large, adjustable 15in industrial touch screen
  • LAN, WLAN, USB-2, RS232, printer and DVI connectivity, standard
  • On board built-in driver for (optional) motorized X-Y stage, standard
  • Free definable test patterns case depth, traverse, free style, etc, optional
  • Raise and lower up to 600kg specimen (standard)
  • Floor standing model

    • Model details

    FH-012-0037:

  • 5-3000kgf – Rockwell, Vickers, Knoop, Brinell, Ball indentation, HVT, HBT
