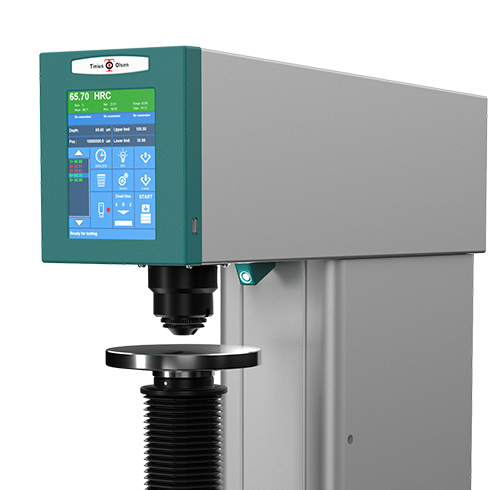

The model FH30-4 combines today’s load application technology with a top class depth measuring system. Rockwell, Superficial Rockwell & Brinell scales are part of the machine’s capabilities. Highly accurate test results and fast operation make it the best in its class today. This model provides a smart user interface, easy to learn and with internal and external data storage options.

Test forces range from 1-250kgf, which means that even this basic model is equipped with Rockwell, Superficial Rockwell and Brinell load settings. System control is managed via a simple-to-use 6.5in full color industrial touchscreen. The touchscreen will also display results and statistics.

FH30-5

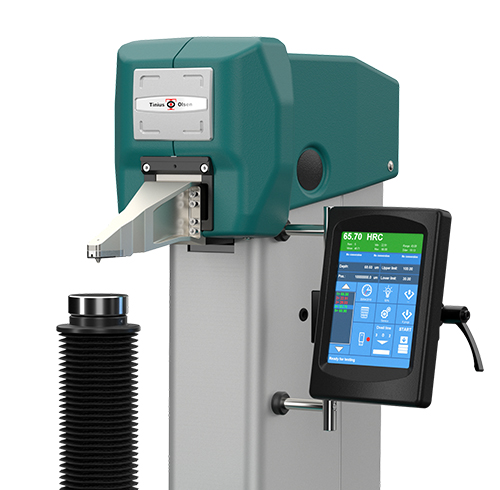

The model FH30-5 is a new generation of hardness testing instrument with protruding nose design. The long nose design makes it possible to reach as far as 150mm inside a bore or just on flat material similar to any other Rockwell hardness tester.

  • Twin-scale Rockwell machine that also provides Brinell testing
  • Easy to use, excellent workpiece overview
  • Test forces range from 1-187.5kgf, which means that even this basic model is equipped with Rockwell, Superficial Rockwell and Brinell load settings
  • System control is managed via a simple-to-use 6.5in full color industrial touchscreen that will also display results and statistics

    •
    FH-030-0004:

  • 3-150kgf – Rockwell, Superficial Rockwell
  • 1-250kgf – Brinell (optional)

    •
    FH-030-0005:

  • 3-150kgf – Rockwell, Superficial Rockwell
  • 1-187.5kgf – Brinell (optional)

    •

    Features & Benefits

  • Load cell, closed loop, force feedback system
  • Load range 1-250kgf (9.8-2452N)
  • Meets or exceeds ISO, ASTM and JIS standards
  • 150mm protruding nose, 200mm throat depth(30-5)
  • Force(load) measurement at the indenter position
  • 250mm workpiece height (30-5)
  • Power LED light near indenter for bright sample illumination
  • Removable workpiece clamp, with interchangeable inserts, clamps/holds sample firmly in position (optional)
  • Industrial 6.5in touch screen
  • USB connectivity
  • ABS cover included, protecting machine base against falling objects
  • Optional Brinell microscope package for Brinell measurement
