Tinius Olsen

Model FH9

tinius
download
C53A4256
C53A4256
C53A4256
C53A4256
previous arrow
next arrow

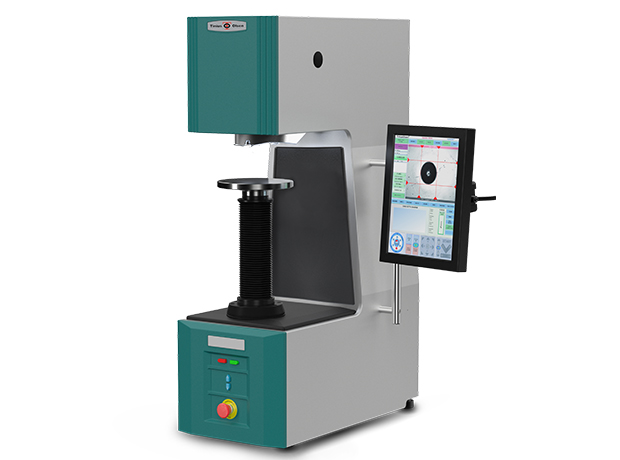

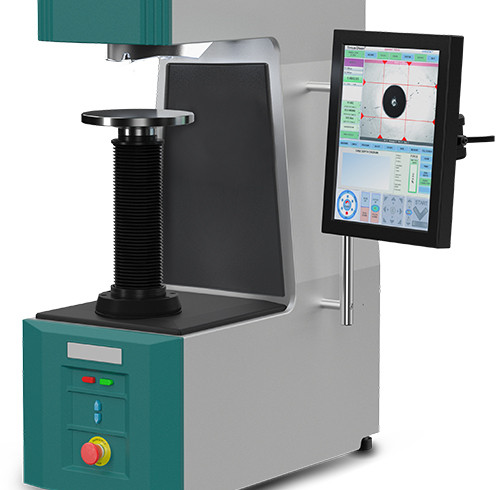

The model FH9-26 is a quality Brinell testing system in a robust, rigid frame.

It integrates a precision optical system with high quality objectives and a digital display, and offers conversion to other hardness scales and online statistics as well as USB, LAN, W-LAN, RS232 data output. The system controls are managed via a simple-to-use 7.5in full color industrial touchscreen, which can also display results and statistics.

Features & Benefits

  • Load cell, force feedback, closed loop system
  • Load range 31.25-3000kgf (306N-29kN)
  • Meets or exceeds ISO, ASTM and JIS standards

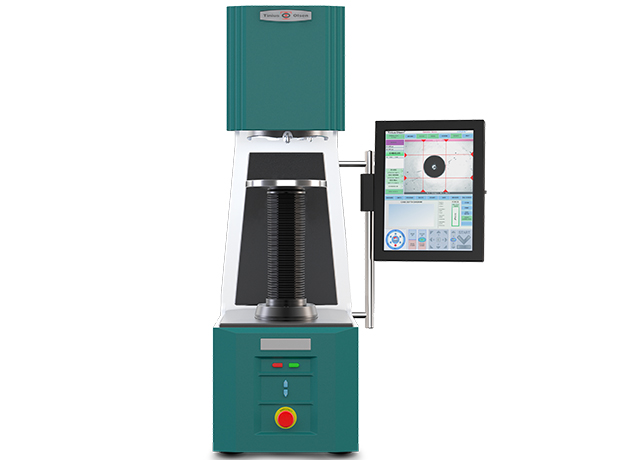

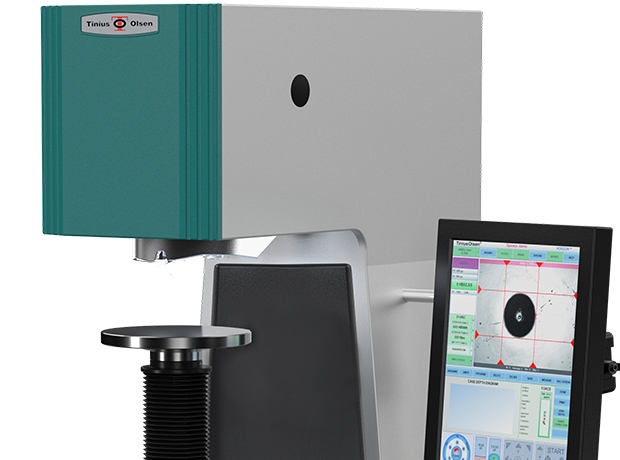

  • Full-color industrial touch screen 7.5in (FH9-26) & 15in (FH9-32)
  • Simultaneous conversion to Rockwell, Vickers and Leeb rebound testing
  • Six-position motorized turret, three indenters, 2 Brinell objectives with ring lights and one laser positioning system (FH9-32)
  • Brinell digital scanner (CCD camera) for automatic indent measurement (FH9-26)
  • Horizon high performance PC-based camera indent measuring system. Automatic measurement of the indent on the industrial touch screen. Archive files, handle images and data on the tester or your network

    • Model details

    FH-009-0026:

  • 62.5-3000kgf – Brinell with scanner

    •
    FH-009-0032:

  • 31.25-3000kgf – Brinell
