Tinius Olsen

Mortar Mixer

slider1

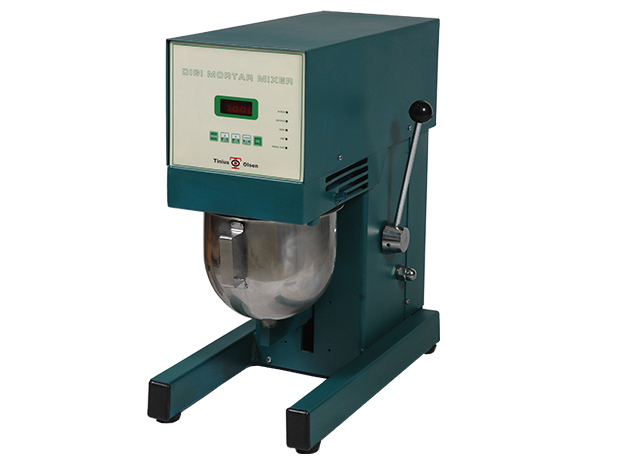

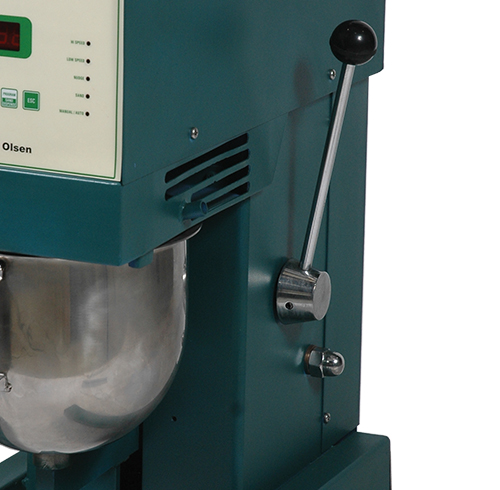

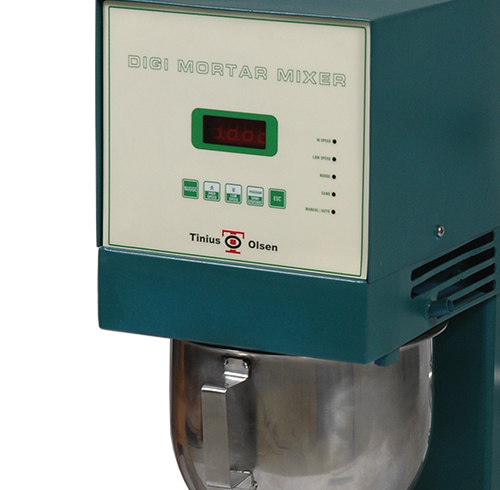

This mixer is designed to mix mortars and cement paste to standard requirements and can be operated in either manual or automatic mode. The mixer features microprocessor control of the speed and mixing program and employs an elliptical mixing motion for thorough and efficient mixing.

It is supplied as standard with:
  • Mixing bowl
  • Paddle
  • Scraper
  • Sand dispenser
  • Water burette
    •
    Applicable Standards: BS 3892-1, 3892-3, 6463-103, 4551-1, ISO 679, EN 196-1, 196-3, 413-3, 459-2, 1744-1, 13279-2, 1015-2, 13395-1, 13454-2.

    Specifications

  • Rated power: 180W
  • Bowl capacity: 5 litres
  • Weight: 54kg
  • Dimension (L x W x H): 530 x 350 x 580mm

    Low speed (rpm)

  • Paddle: 140 ± 5
  • Mixing head: 62 ± 5

    High speed (rpm)

  • Paddle: 285 ± 10
  • Mixing head: 125 ± 10

    • Ordering information

  • TO-412-01 Mortar mixer with sand and water dispenser, 110VAC, 60Hz, 1ph
  • TO-412-02 Mortar mixer with sand and water dispenser, 220VAC, 60Hz, 1ph
  • TO-412-03 Mortar mixer with sand and water dispenser, 220VAC, 50Hz, 1ph
