Slump Cone Test

slider1

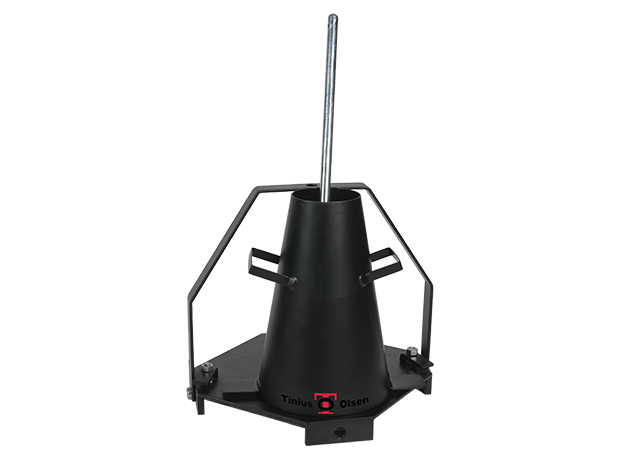

The sheet steel slump cone is filled with freshly mixed concrete and tamped with a tamping bar in four layers. The top of the concrete is levelled off with the top of the slump cone; the cone is lifted off the base and the slump of the sample is immediately measured.

This test is considered suitable for cohesive and plastic mixes of concrete containing aggregate smaller than 50mm.

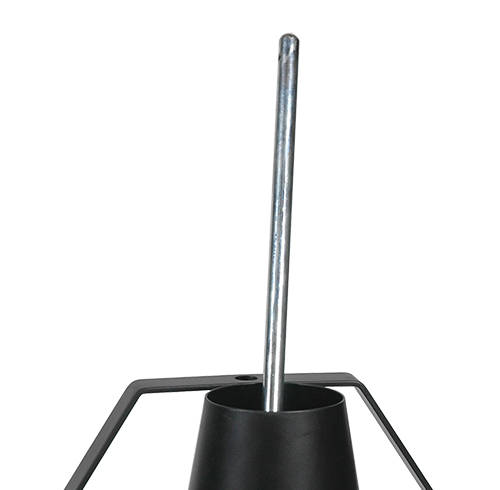

It is supplied complete with a base plate that has cleats and a swivel handle, and a tamping rod with a diameter of 16mm and is 600mm long (part number TO345).

Applicable Standards: EN 12350-2, ASTM C143.

Features & Benefits

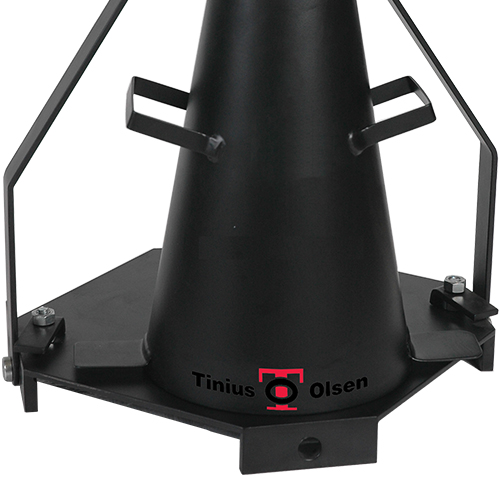

  • Base has cleats on its underside to help dig into the ground surface
  • Positive clamping of slump cone to the base while filling and tamping the concrete
  • A combination swivel carrying handle also serves as the datum, making the conventional and somewhat awkward measuring procedure of using a rule and a datum bar a thing of the past

    •
    Supplied as standard with:

  • TO-33401 Slump cone
  • TO-33402 Standard slump test base plate with swivel handle
  • TO-345 Tamping rod, steel, 16mm diameter, 600mm long

    • Options & Accessories

  • TO-33401 Slump cone
  • TO-33402 Standard slump test base plate with swivel handle
  • TO-33403 Slump cone funnel
  • TO-33404 Extended slump test base plate with two handles, 400 x 600mm
  • TO-345 Tamping rod, steel, 16mm diameter, 600mm long
